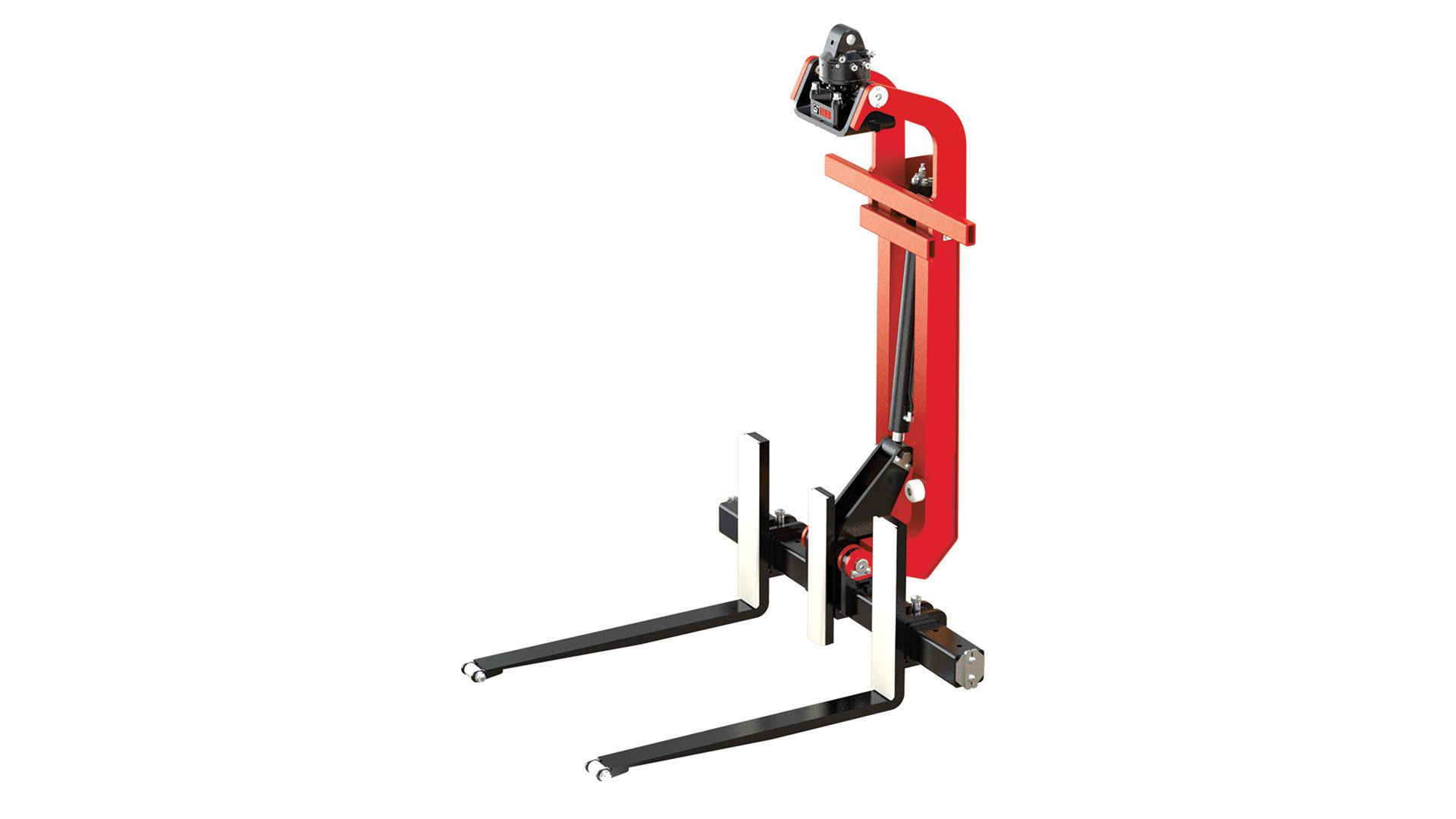

UNIVERSAL FORK KM 461

Different tine spreads: besides the standard tine spread of 640-1600mm further tine spreads are available (up to 1000, 1830 or 2130 mm), depending on the sheets that have to be handled.

Safe transport of sheets of wallboard in the hinged lower section. The boards can be lifted and folded into a vertical position and clamped between the tines and frame, preventing them from sliding during handling.

Protection of the sheets during unloading through semi-tapered forged tines, equipped with rollers and pads. A standard centre slide gives an additional support point for your loads.

Security is assured even in case of a drop in pressure due to the integrated counterbalance valve that prevents the fork from opening unintentionally.

The hydraulic cylinder is equipped with a pressure relief valve to prevent overload.

Accurate positioning of the load is ensured by the tilt cylinder and the rotator.

The special version of the universal fork, the KM 461A with a second suspension point on the main beam enables the unloading of lying boards through narrow openings in the wall.
