Hiab is the world's leading provider of on-road load handling equipment, intelligent services, smart and connected solutions.

Hiab - We keep everyday life moving

WALTCO HLF Series

PagePreview

Service and Support

Request a quote

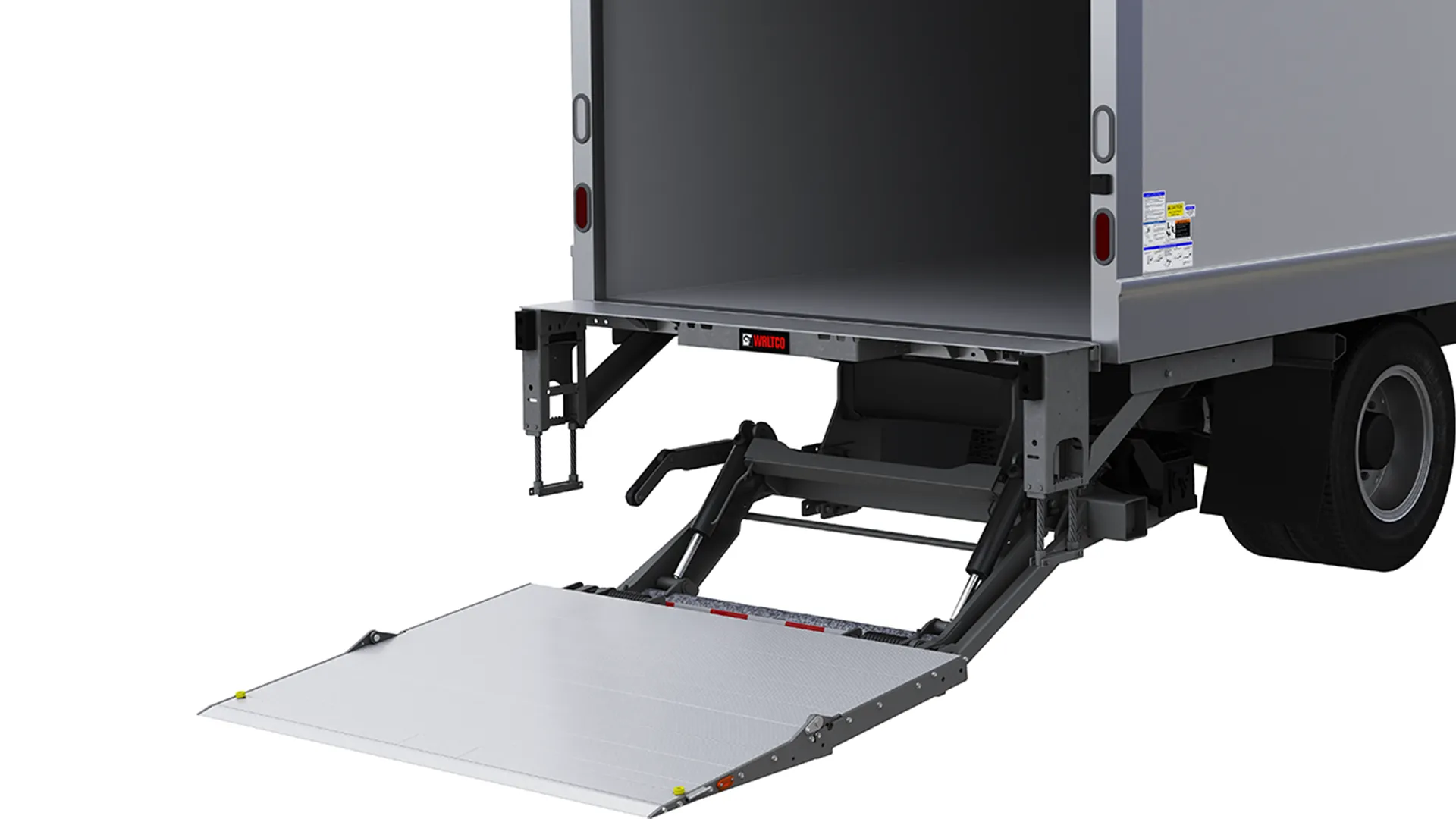

A simplified design that offers maximum convenience, performance and flexibility. The two-section, lightweight loading platform can be folded and stored beneath the truck body floor, enabling easy access to the cargo area without activating the lift. The liftgates are welded to the frame of the vehicle chassis to ensure optimum safety.

Knurled aluminium platform and galvanized mainframe comes as standard.

HLF/AP-25

HLF/AP-30

HLF/AP-40

HLF/AP-50

#/categories/category[@name='productfinderwaltco']/description#

ProductFinderWALTCO

We offer various bed extension options to accomodate additional needs.

-102" Wide Vehicle modification
-Walk Ramp Compatible bed extension (bolt-on option for galvanized gates)
-Bolt-on bed extension kit

EM & HLF Only:
-Swing door compatible bed extension

HLF Only:
-1/2" Thick bed extension

*WFL only offers the 102" wide option

USP_677158

Bed Extention Options

Heavy Duty (up to 5,000 lb. capacity) Flipaway Gate features a large knurled platform with individually replaceable extrusions, making the HLF the most popular flipaway choice.

USP_883622

Heavy Duty Flipaway (up to 6,600 lb. capacity)

In the world today, options are a necessity. That holds very true when it comes to operating your liftgate. WALTCO offers many convenient options to allow you to control your liftgate safely.

Dual Controls - conveniently allow liftgate operation from the side of the vehicle or from another location. This is convenient and safe for single driver deliveries, allowing less climbing and more control.

Hand Held Remote Kit - allows a larger viewing area for the operator. The remote cord moves with you to allow more control and visibility of your work space.

Cab-Mounted Shut-off Safety Switch - this swich is mounted inside the cab and allows the driver to keep power to the liftgate off while it's not in use. This feature ensures the liftgate will not be available for unauthorized use.

USP_677135

Additional Control Options

"Standard Galvanization to all liftgate components to eliminate rust and prolong the life of your liftgate.
*Platform in knurled aluminum*"

USP_883660

Standard Galvanization

Standard bolt-on 3/8" thick bed extension, bolt on 2 step dock bumpers with UHMW pads, and Reduced Maintenance Features make installation quick and easy.

USP_883662

Easy-Install Features

USP_882307

Bed Heights 46" - 60"

WALTCO offers many additional options for various dock bumper requests. Some available options for our Flipaway dock bumpers include:

Steps
-Steel steps (one or two)
-Wire rope step

Lighting options
-no lights
-prepped for lights
-red/white lighs
-red/red lights

*Rubber Bumper Pad Kit for C-Series

Talk to your WALTCO representative for specific requests.

USP_677160

Dock Bumper Options

USP_676806

Cart Stops

Flipaway Gate features a large knurled platform with individually replaceable extrusions, making the HLF the most popular flipaway choice.

USP_677015

Heavy Duty (up to 5,000 lb. capacity)

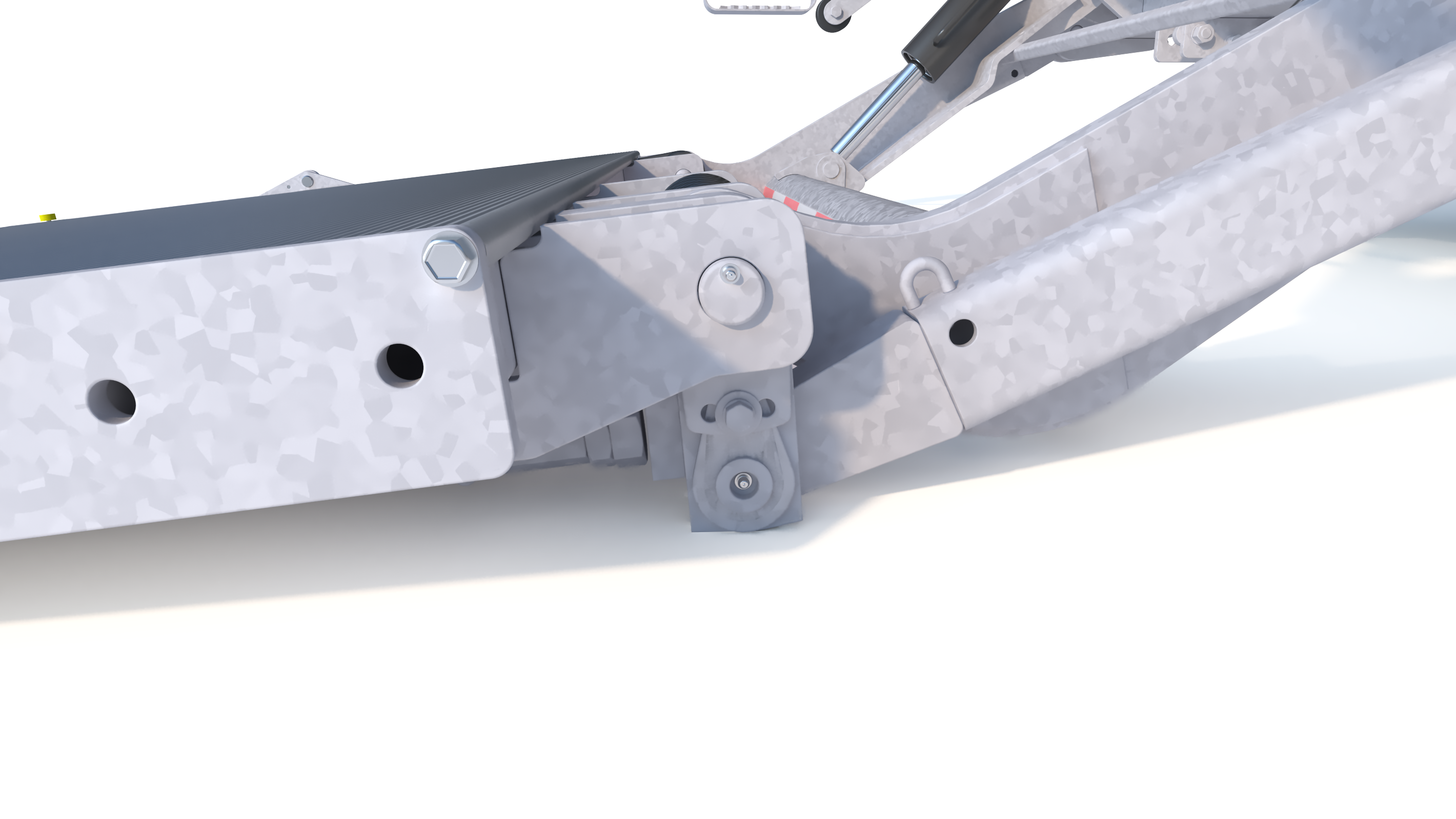

Standard power down feature keeps your gate running faster. Hydraulic cylinders are retracted and protected in the transit position to keep them safe from road debris.

USP_883661

Safe and Fast

We offer additional power options for our Flipaway liftgates.

Power Down Option - for our Flipaways that come standard with gravity down, we offer the option of power down.

Tracter Wiring Kits - we offer wiring kits for your tractor
Trailer Wiring Kit - single and dual pole kits and chargers for various setups

Cables:
 - higher amperage cables available (200 amps)
 - longer 50' cable available (150 and 200 amps)

USP_677162

Power Options
Flipaway

Film_677077

WALTCO HLF Flip-Away Gate

Film_1114410

WALTCO HLF Operator Video
