S-Boom Material Handler Crane

Safety, Reliability and Performance

Request a Quote

S-Boom Loader

HIAB Straight Boom Crane

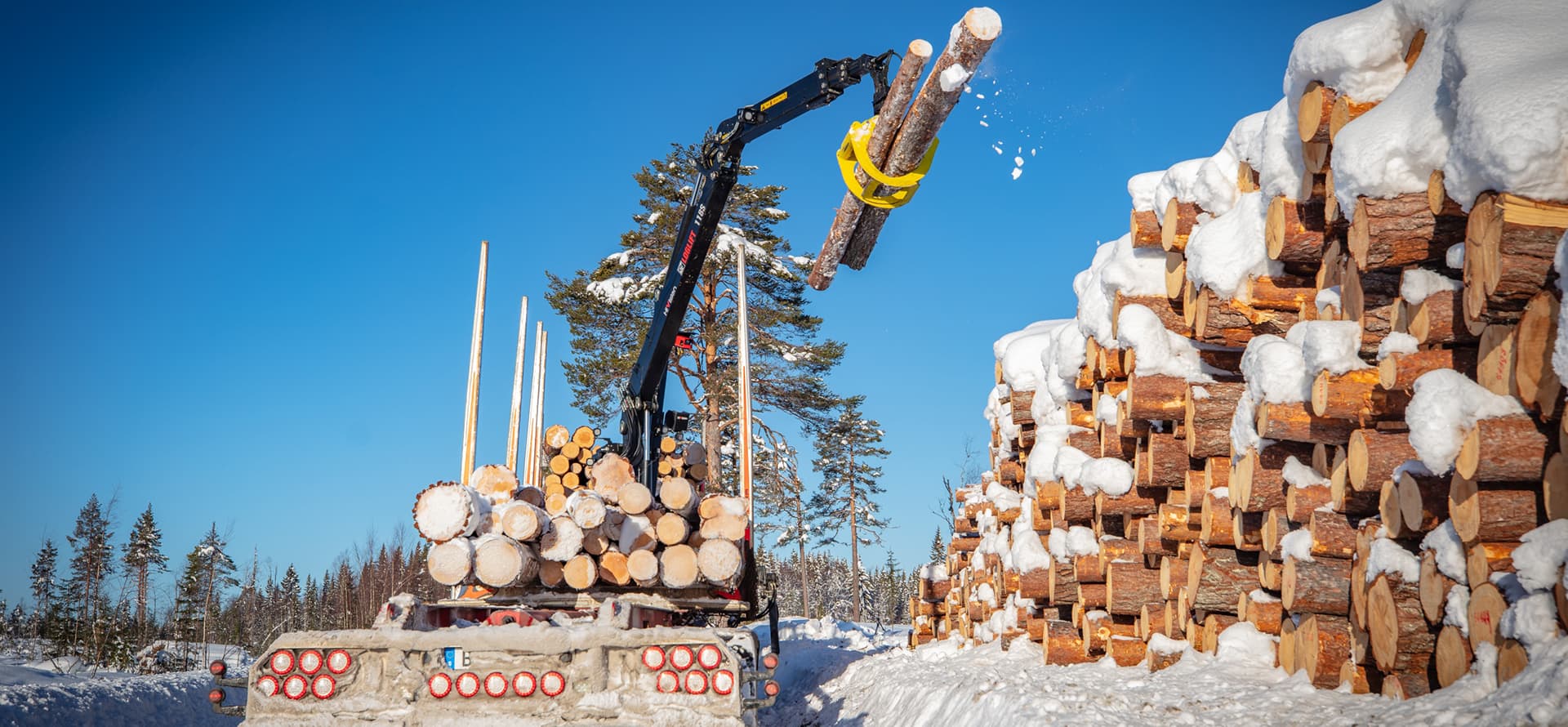

The Straight Boom crane delivers what the US market expects, and more, with a focus on safety, reliability, and performance. The column design combines a lighter weight, but the performance is distinctly heavyweight, with large lifting capacities and thrives on intense load cycles.

The Straight Boom Crane is the most popular material handler crane on the market - and not without reason: it combines power, speed, and efficiency in just the right proportions. Offering many telescoping models to effortlessly reach material from further away. Utilizing a rack and pinion slewing system, creating the highest slewing torque, with smooth operation in the industry, allowing placement of material exactly where it’s needed.

View S-Boom Loaders

Straight Boom Crane (S-Boom Material Handlers) Models

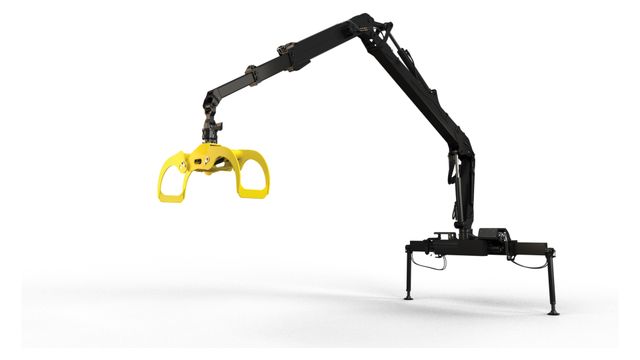

JONSERED 1000SR

7200 lbs at 10 ft Capacity, Stationary mount/Loose Hydraulic Control, Max Reach 24’1”-30’10”, Weight 3420-3740 lbs (without stabilizers)

Read More

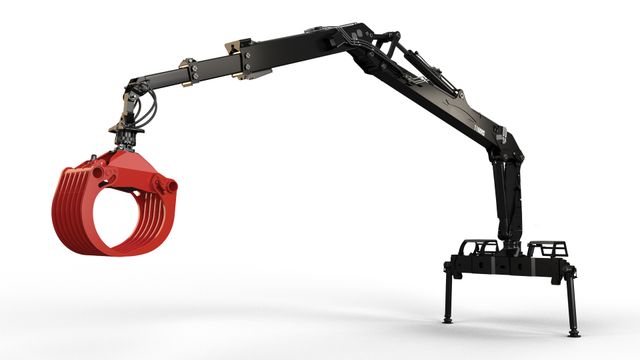

JONSERED 1100RS

7300 lbs at 10 ft Capacity, Remote Control/Stand Platform, Max Reach 23’3”-29’2”, Weight 4450-4850 lbs (including stabilizers)

Read More

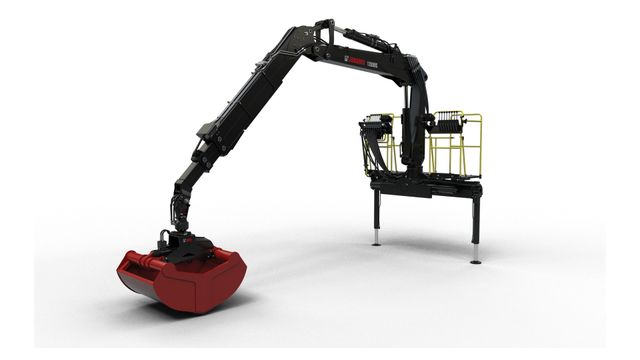

JONSERED 1200RS

7300 lbs at 10 ft Capacity, Manual Hydraulic Control/Stand Platform, Max Reach 23’3”-29’2”, Weight 4370-4780 lbs (including stabilizers)

Read More

HIAB J14S

9300 lbs at 10 ft Capacity, Top Seat Side Mounted, Max Reach 25’11”-31’5”, Weight 4810-5120 lbs (including stabilizers)

Read More

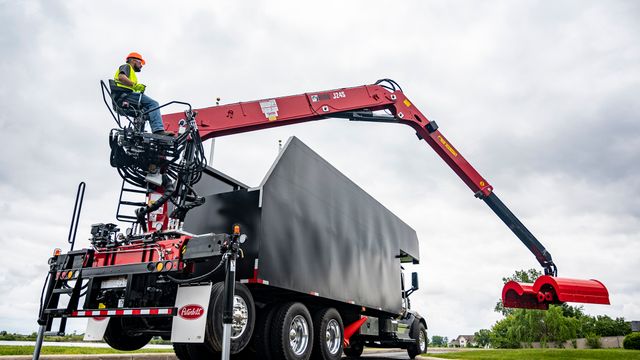

HIAB J24S

15950 lbs at 10 ft Capacity, Top Seat Side Mounted, Max Reach 24’1”-30’10”, Weight 6440-7210 lbs (including stabilizers)

Read More

Straight Boom Crane Features

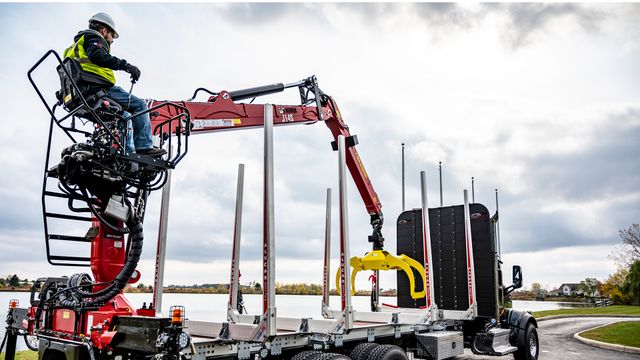

Operator Safety and Comfort

Hiab Loaders top seat area has been designed with operator safety in mind. The operator area is surrounded with safety rails, and the premium top seat is comfortable, ergonomic, and easy to access. The seat has wide range of adjustments, allowing it to be adjusted to the ideal working position. All standard operations are at arm's reach from the top seat, offering easy access to the stabilizer controls, truck start/stop, e-stop, and work light controls.


Estop System

An optional E-stop kit improves safety. One hit on the button stops all operations – just what you need in an emergency, such as hydraulic system failure. This option also includes operator indication for transport status of boom and stabilizers and operational status of capacity.

Load Holding Valves

For enhanced safety, Hiab Loaders can be equipped with Load Holding Valves (LHV) for boom systems and/or slewing. LHV's will keep the load safe and stationary in the event of damage to a hydraulic hose or connector.

Precision Hydraulic System

Hiab Loaders have a Precision Hydraulic System with a fixed pump, 2 circuit system. Its high pressure filtration and other operational characteristics, such as their control valve/spool design, create a smooth operation with high flow capabilities.

Double rack'n'pinion slewing system

The column design offers use of high-torque rack and pinion slewing mechanism for more precise and efficient loader control. In addition, the double racks offer higher slewing torque capabilities for more efficient loading and better performance in uneven terrain. The slewing mechanism is lubricated constantly in an oil bath, increasing reliability and extending the loader’s working life.

Service Network

We have invested heavily in our Nationwide Service and Support team as part of our commitment to our customers. With 28 branch locations and over 200 factory-trained mobile service technicians, your Hiab Loader is protected with an unrivaled coast-to-coast service network, greatly reducing the downtime of your equipment, thus reducing overhead costs.


nDurance Paint

nDurance is Hiab's state of the art anti-corrosion paint system using nano technology for the ultimate anti-corrosion coating, maintaining a rust-free reliable crane.


DOWNLOAD OUR BUYING GUIDE

Whether you know exactly what you're looking for, or you are looking for more information on our product lines, download our first time buyer's guide for more information.

DOWNLOAD BUYERS’ GUIDES

S-Boom Material Handler Attachments

Download our attachment data sheets for more information.

Grapple Brochure

View All Attachments

Industry Challenges


Downtime

Hiab brings a longer service life to the material handling market. They are designed and constructed to thrive on high-intensity, heavy-duty work year after year. Day-to-day productivity is secured by Hiab’s industry-leading nationwide service network and exceptional 2 years’ full warranty plus 3 years’ structural component warranty program.


Safety

Hiab Material Handlers are designed with industry leading safety features that keep operators safe and in control. Safety and stability are built into all Hiab material handlers without compromizing their performance, and with additional safety options available Hiab will meet the individual needs of customers in the forestry, railroad and recycling industries.


Reliability

The HIAB material handlers are the industry leaders in the area of reliability. Our products are engineered to ensure optimum longevity and service life of your equipment. All backed up with the most comprehensive warranty in the market.


Efficiency

Hiab's advanced technology drives the performance of the equipment resulting in superior operation efficiencies. Hiab's class-leading products can not only be used by operators of different skill levels, but are also versatile with the everchanging operational environment.


Revenue

Combining durability and high productivity, the HIAB material handlers help lower operational costs and support consistent, efficient operations. With a proven design, quality materials, and industry specific innovation, investing in a Hiab material handler provides a total package for any industry.


Training

Training and educating operators takes time, but the Hiab material handlers allow customers to manage their resources in the best way. With a local Hiab expert, customers have direct access to the manufacturer and are able to secure the highest quality training.


2-Year Industry Leading Warranties

Hiab Material Handlers are built to perform, with strong materials and a quality of workmanship no other supplier can match. And because we build them with care, we stand behind them with confidence. Today all Hiab Material Handlers come with a two-year standard warranty that applies to all components.

Warranty Statement Summary

Material Handler Warranty Brochure


View All Operator's Manuals

Click through to view all Operator's Manuals for our equipment.

Click Here

Buyer's Guide

HIAB Material Handler Buyer's Guide

Spec Sheets

J14S - Loader Tech Data

J24S - Loader Tech Data

J1000 - Loader Tech Data

J1200 - Loader Tech Data

L96S - Loader Tech Data

Brochures

2022 HIAB S-Boom Brochure

Hi_Vision Brochure

Grapple Brochure

 View All Operator's Manuals

Click here to view all Operator's Manuals.
