Z Crane - Material Handler

HIAB Z-Boom Material Handler

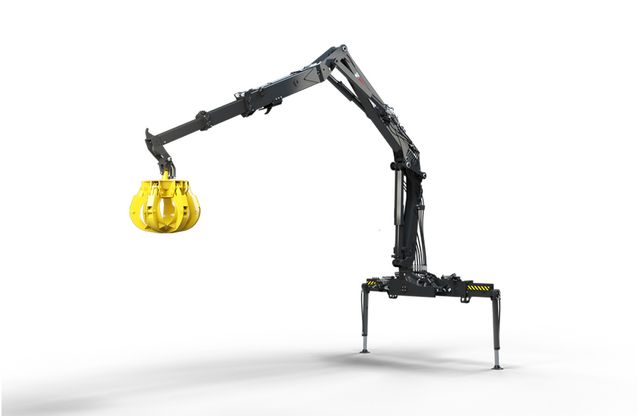

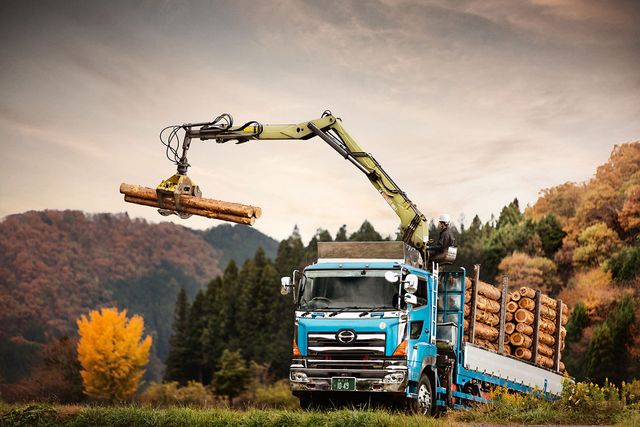

When you need a loader that conserves space, the Z-Boom is the ultimate solution. A Z-boom can be folded and stowed out of the cargo area. The Z-Boom range brings ruggedness, reliability, and productivity to the material handling industry, offering a rack and pinion slewing system delivering the smoothest slewing with the highest torque.

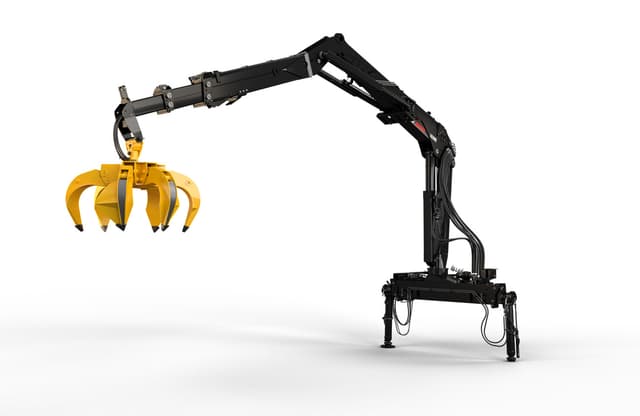

Z-Boom systems offer a compact loader with excellent lifting capacity, durability and reach when equipped with a telescopic boom. The robust design is perfect for high intensity work and combines a lighter weight with space efficiency.

View Z-Boom Products

Z-Boom Material Handler Models


JONSERED 1500RZ

9150 lbs at 10 ft Capacity, Top Seat Side Mounted/Remote Control/Stand Platform, Max Reach 26’3”-31’2”, Weight 3250-5370 lbs (including stabilizers).

Read More

JONSERED 1620RZ

8929 lbs at 10 ft Capacity, Remote Control/Stand Platform, Max Reach 25’7”-30’6”, Weight 5860-6080 lbs (including stabilizers).

Read More

LOGLIFT 105Z

6000 lbs at 10 ft Capacity, Top Seat Side Mounted, Max Reach 24’11”-29’6”, Weight 4280-4560 lbs (including stabilizers).

Read More

LOGLIFT 82Z

4250 lbs at 10 ft Capacity, Top Seat, Max Reach 23’7”-27’6”, Weight 3680 lbs (including stabilizers).

Read More

Z-Boom Material Handler Features


Operator Safety and Comfort

Hiab Loaders top seat area has been designed with operator safety in mind. The operator area is surrounded with safety rails, and the premium top seat is comfortable, ergonomic, and easy to access. The seat has wide range of adjustments, allowing it to be adjusted to the ideal working position. All standard operations are at arm's reach from the top seat, offering easy access to the stabilizer controls, truck start/stop, e-stop, and work light controls.


Estop System

An optional E-stop kit improves safety. One hit on the button stops all operations – just what you need in an emergency, such as hydraulic system failure. This option also includes operator indication for transport status of boom and stabilizers and operational status of capacity.

Load Holding Valves

For enhanced safety, Hiab Loaders can be equipped with Load Holding Valves (LHV) for boom systems and/or slewing. LHV's will keep the load safe and stationary in the event of damage to a hydraulic hose or connector.

Precision Hydraulic System

Hiab Loaders have a Precision Hydraulic System with a fixed pump, 2 circuit system. Its high pressure filtration and other operational characteristics, such as their control valve/spool design, create a smooth operation with high flow capabilities.

Double rack'n'pinion slewing system

The column design offers use of high-torque rack and pinion slewing mechanism for more precise and efficient loader control. In addition, the double racks offer higher slewing torque capabilities for more efficient loading and better performance in uneven terrain. The slewing mechanism is lubricated constantly in an oil bath, increasing reliability and extending the loader’s working life.

Service Network

We have invested heavily in our Nationwide Service and Support team as part of our commitment to our customers. With 28 branch locations and over 200 factory-trained mobile service technicians, your Hiab Loader is protected with an unrivaled coast-to-coast service network, greatly reducing the downtime of your equipment, thus reducing overhead costs.


nDurance Paint

nDurance is Hiab's state of the art anti-corrosion paint system using nano technology for the ultimate anti-corrosion coating, maintaining a rust-free reliable crane.


DOWNLOAD OUR BUYING GUIDE

Whether you know exactly what you're looking for, or you are looking for more information on our product lines, download our first time buyer's guide for more information.

DOWNLOAD BUYERS’ GUIDES

Z-Boom Material Handler Attachments

Download our attachment data sheets for more information.

Grapple Brochure

View All Attachments

Industry Challenges


Downtime

Hiab brings a longer service life to the material handling market. They are designed and constructed to thrive on high-intensity, heavy-duty work year after year. Day-to-day productivity is secured by Hiab’s industry-leading nationwide service network and exceptional 2 years’ full warranty plus 3 years’ structural component warranty program.


Safety

Hiab Material Handlers are designed with industry leading safety features that keep operators safe and in control. Safety and stability are built into all Hiab material handlers without compromizing their performance, and with additional safety options available Hiab will meet the individual needs of customers in the forestry, railroad and recycling industries.


Reliability

The HIAB material handlers are the industry leaders in the area of reliability. Our products are engineered to ensure optimum longevity and service life of your equipment. All backed up with the most comprehensive warranty in the market.


Efficiency

Hiab's advanced technology drives the performance of the equipment resulting in superior operation efficiencies. Hiab's class-leading products can not only be used by operators of different skill levels, but are also versatile with the everchanging operational environment.


Revenue

Combining durability and high productivity, the HIAB material handlers help lower operational costs and support consistent, efficient operations. With a proven design, quality materials, and industry specific innovation, investing in a Hiab material handler provides a total package for any industry.


Training

Training and educating operators takes time, but the Hiab material handlers allow customers to manage their resources in the best way. With a local Hiab expert, customers have direct access to the manufacturer and are able to secure the highest quality training.


2-Year Industry Leading Warranties

Hiab Material Handlers are built to perform, with strong materials and a quality of workmanship no other supplier can match. And because we build them with care, we stand behind them with confidence. Today all Hiab Material Handlers come with a two-year standard warranty that applies to all components.

Warranty Statement Summary

Material Handler Warranty Brochure


View All Operator's Manuals

Click through to view all Operator's Manuals for our equipment.

Click Here

Buyer's Guide

HIAB Material Handler Buyer's Guide

Spec Sheets

L105Z - Loader Tech Data

J1500RZ - Loader Tech Data

JR82Z - Loader Tech Data

J1620RZ - Loader Tech Data

Brochures

Z-Series Brochure

2022 HIAB Z-Boom Brochure

Hi_Vision Brochure

Grapple Brochure

 View All Operator's Manuals

Click here to view all Operator's Manuals.
