JONSERED 2490S

PagePreview

Posventa y repuestos

Solicitar presupuesto

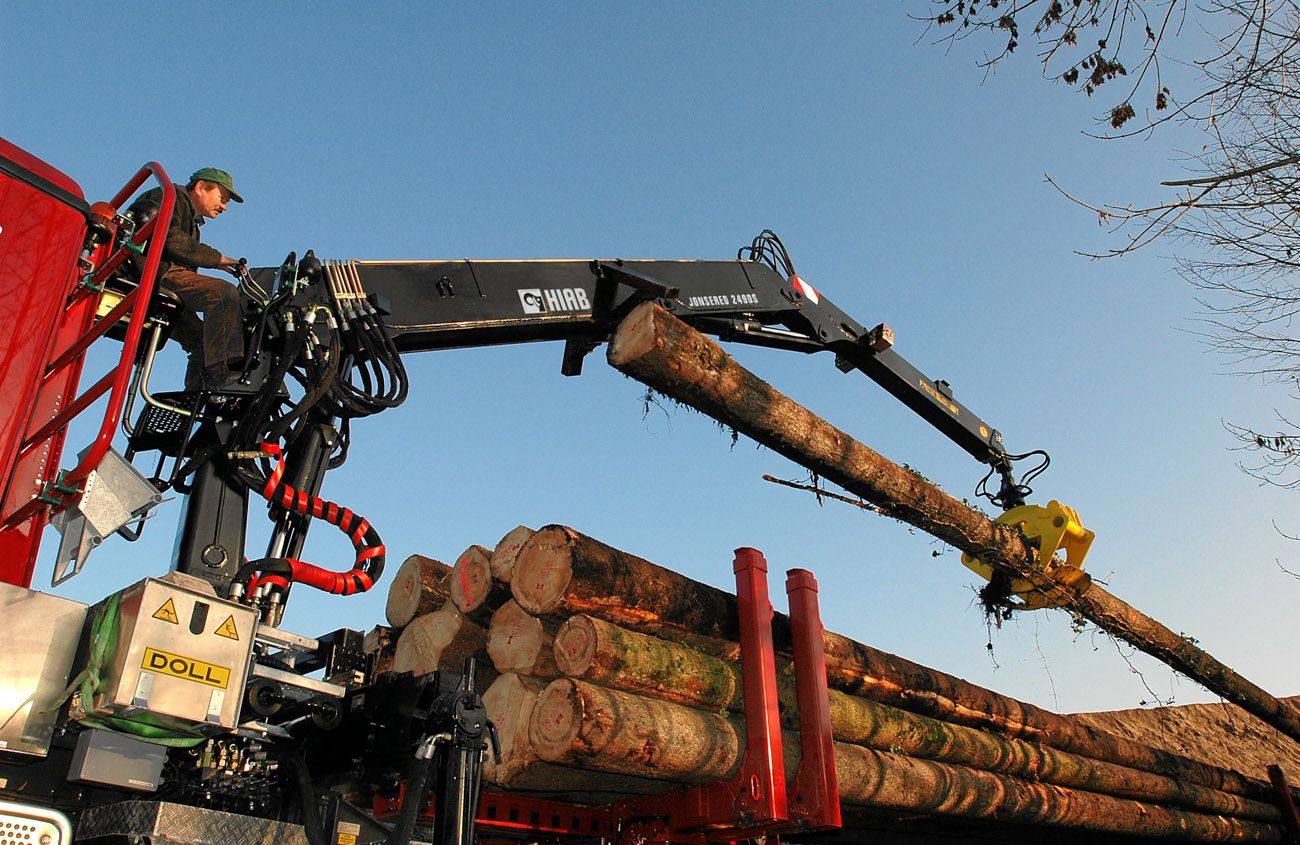

La pieza central de la gama de modelos JONSERED, la legendaria JONSERED 2490S Big Jon, es una de las grúas para troncos largos más populares, conocida por los profesionales dedicados a la manipulación de la madera de todo el mundo. Diseñada para trabajos duros, la Big Jon es famosa por su durabilidad. Sigue cargando y descargando cuando otras grúas ya no pueden más.

JONSERED 2490S | Grúa forestal | Hiab

JONSERED 2490S79 (40)

JONSERED 2490S85 (40)

JONSERED 2490S91 (46)

JONSERED 2490S97 (52)

#/categories/category[@name='productfinderjonsered']/description#

ProductFinderJONSERED

Keeping the slewing mechanism immersed in oil is a prerequisite in the
heavy-duty type of work that our cranes perform. The oil bath provides
smooth and precise slewing and reduces wear on the mechanism, keeping
repair and service costs to a minimum.

USP_657327

Image_657329

Oil Path illustration

Oil Bath

Double-rack slewing gives the slewing motion a smooth start and is especially
suitable for heavy-duty applications. The end cushion dampens
slewing effectively when approaching the limit. The double-rack design
is extremely reliable and also gives high torque – keeping maintenance
costs down and productivity up. Rack and pinion slewing provides reliable
operation even on inclines or slopes.

USP_657344

Image_1207578


Double Rack Slewing

Swivelling couplings increase the lifetime of hydraulic hoses. Hoses can
move more freely when the crane rotates which reduces wear. This means
you spend less time on repairs and have lower maintenance costs and
increased uptime.

The swivelling couplings are a JIC coupling rotating together with
the hose. These types of couplings are found on all hydraulic lines for
pressure, tank and slewing going from crane base to the control valve
and the boom system.

USP_657346

Swivelling Couplings

Long live hoses!
Irregular loads such as logs, branches and scrap metal can be a problem and damage equipment – hydraulic hoses in particular are at risk. The Hose Protection Link, HPL, is a smart way of protecting them. Hydraulic hoses run from the crane tip through the link down to the rotator keeping them well protected, yet accessible for service and maintenance as necessary.

Read more about our features: https://www.hiab.com/en/global/forestry-features

USP_657364

Image_657366

HoseProtectionLink_Final_Original_67911.tif

Image_657367

Hose Protection Link Illustratuion

HPL (Hose Protection Link)

Comfort is a priority when you work outdoors, especially when conditions are extreme. The high seat is comfortable, ergonomic and easy to access. You can adjust your seat upwards, downwards, forwards and backwards to find your own ideal working position. Your high seat can also be heated, or equipped with a protective hood that folds out from behind your head.

USP_659368

Film_4920

Premium Top Seat

Top Seat

Film_4919

Safety Plus

HIAB nDurance protects the crane from the elements with the best in surface protection. Technologically advanced and environmentally sound, this high-tech painting system first shields the crane’s parts with an ultra-thin nanoceramic layer that prevents corrosion. Afterwards they receive a lacquer polymer e-coating and a durable powder coating, creating stunning good looks that will last the crane’s lifetime

Film_646329

nDurance Video

Film_4922

Hose Protection Link
