DAF - X-HiPro 232 + Multilift
- ヒアブジャパン
- Installations
- 標準架装

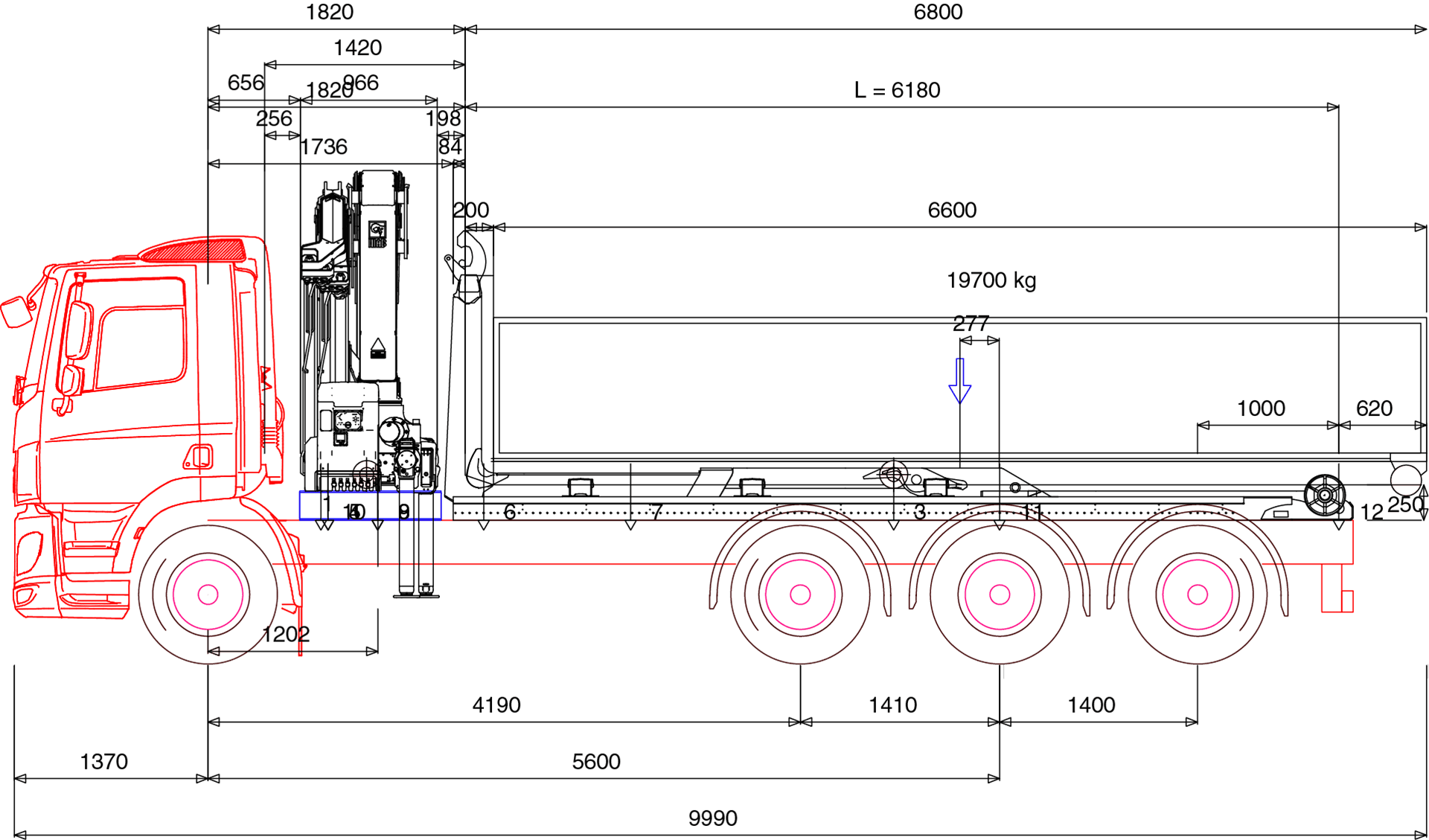

- Specification DAF X HiPro 232
Crane: HIAB X-HiPro 232E-3
Lifting capacity (ADC): 20,7 tm
Slewing angle: 415°
Maximum outreach: 10,6 m
Type stabilisers: Fixed
Stabiliser spread: 5500 mm
Oil flow: 120 liter/min
Installation space: 977 mm
Type VSL: VSL3
Extra functions:
- Extension real outside
- CTC
- SAF
- Platform
Truck brand and type: DAF CF400 8x2 FAQ
Cabin: Day cab
Color cabin: Black
Wheelbase: 5600 mm
Tires front axle: 385 / 65 R22,5
Tires pusher axle: 385 / 65 R22,5
Tires drive axle: 315 / 80 R22,5
Tires rear steer axle: 385 / 65 R22,5
Front axle capacity: 9 ton
Rear axle capactity: 27 ton (8 + 11,5 + 7,5)
Gross vehicle weight: 32 ton
Installation: Hiab FrameWorks
Type subframe: Hiab FrameWorks Multibeams
Type oil tank: Chassis tank 200 L aluminium
Type pump: Load sensing variable
Hooklift: MULTIFLIFT XR26S
Type: Multilift XR26S
Mounting height: 270 mm
System length: 6100 mm
Hydraulic body locking: Inside in front, outside in back
Installation kit: DAF
Additional functions:
- Friction relief
- Automatic sequence control
- Fast speed
- Fast tipping
- Warning buzzer, mounted outside cabin
- Hour meter
Under run bar: Electrical 800 mm
