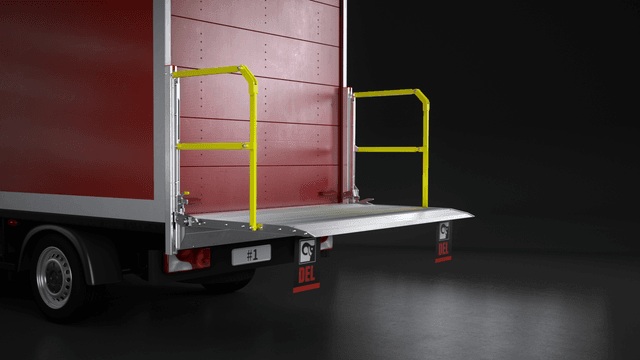

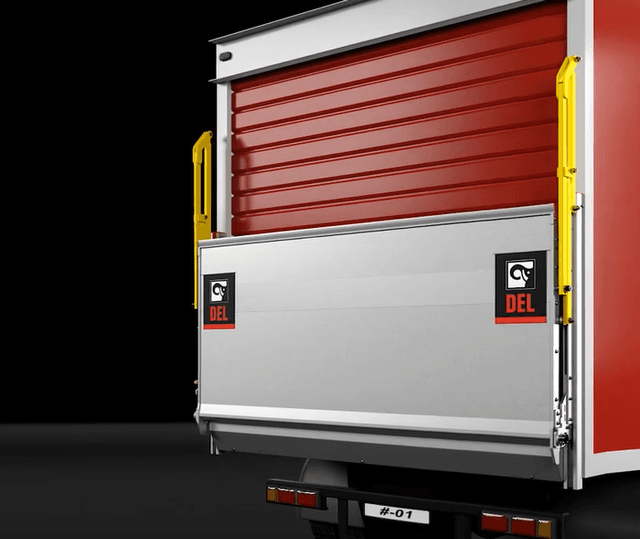

Arguably the safest and most user friendly types of guards because they automatically deploy when the platform is opened. The guards are permanently hinged to the tip of the platform, simply closing the platform causes the fences to fold up automatically. Preferred by operators, because they have no extra work to do but also by vehicle owners because the guards must always be used.

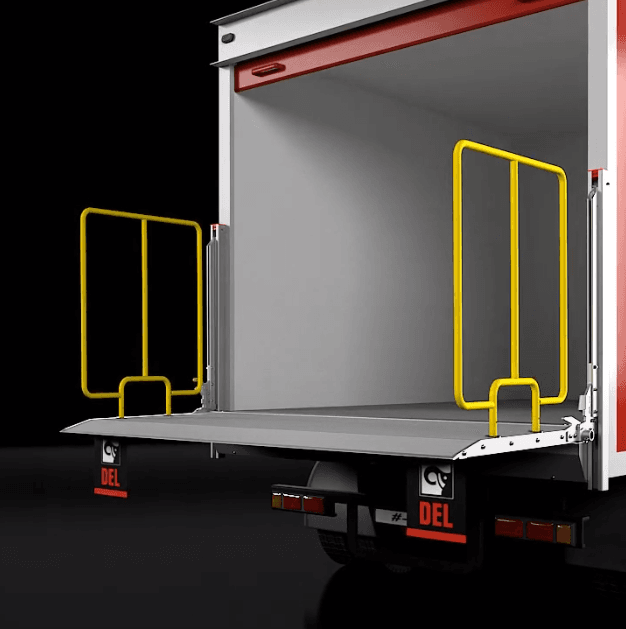

This is the simplest solution, the guards can be fitted to any type of platform, on any type of tail lift ‘Pockets’ set into the platform allow the guard to be dropped into position. When not needed the guards are stored within the vehicle. These type of guards can be retrofitted to tail lifts already fitted to vehicles.

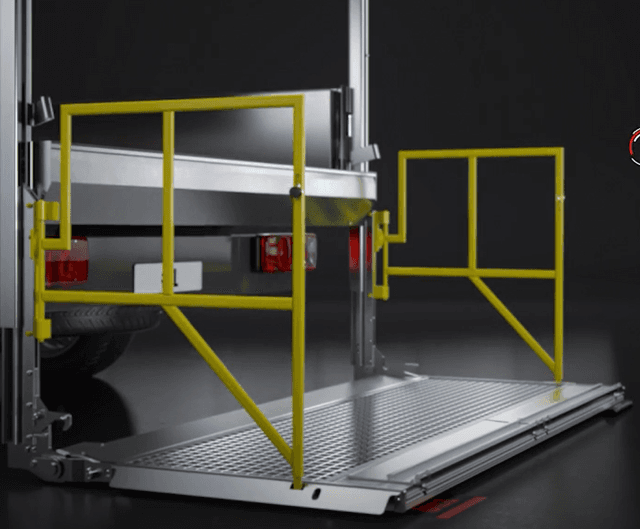

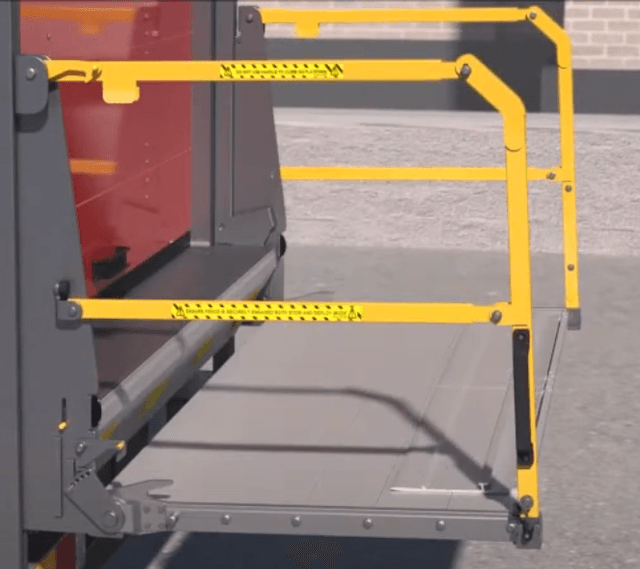

These guards are our latest innovation and offer the best of both worlds. They operate in the same way as the auto erect but with an additional feature. Instead of being permanently fixed to the platform,  a quick release system allows the guards to be manually pushed upwards and held securely in the upright position. This permits the platform to be loaded/unloaded from the side. When the guards are next required, simply unlatch from the vertical position and re-attached to the end of the platform.

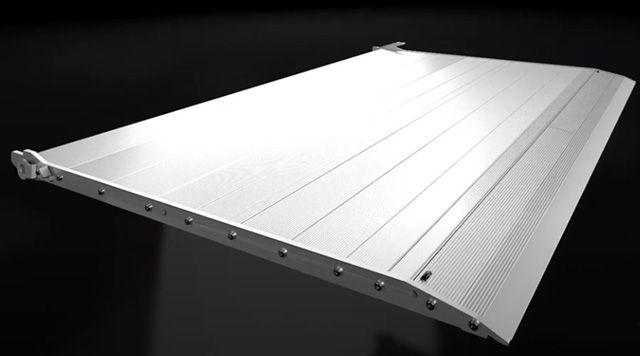

We have the ability to increase the overall working size of the platform to suit a wide range of application needs. Please contact our sales teams with information on the items you are lifting and they will help you spec the correct platform size for your needs

We have a comprehensive range of fitting kits available to suit a multitude of factory built dropside and luton bodies. Each kit has been carefully designed to ensure ease of fitment plus being robust to stand up to daily operation.

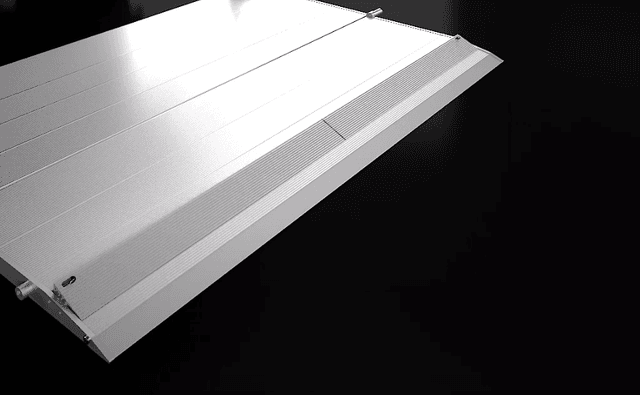

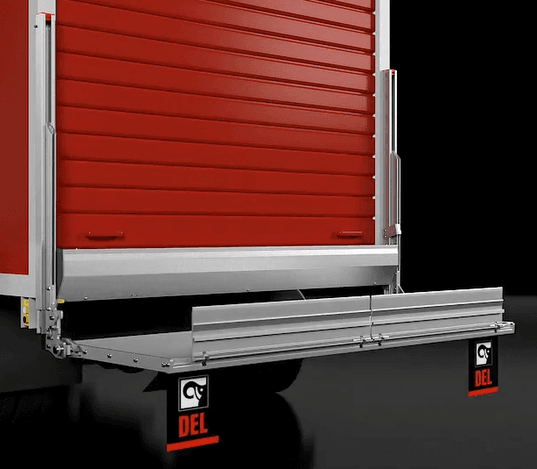

Rear ramps are permanently fixed to the platform. There are three possible positions. 1. Opened, to form a ramp from the platform to the ground. 2. Locked vertically, to act as a trolley stop. 3. Folded back on to the platform surface before platform is closed, prior to vehicle movement.

Side ramps operate in the same way as the rear ramps but are fixed to the side of the tail lift platform instead of the rear. This is only suitable on certain specs of DL500 Lift.

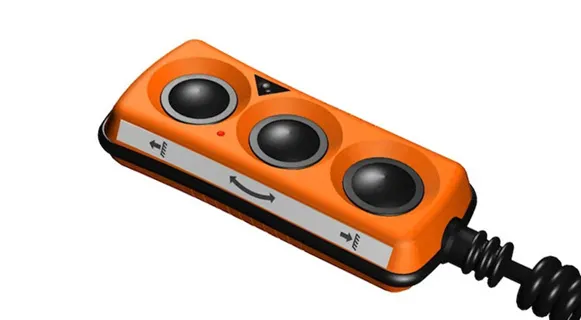

A secondary Internal Control is available, in order for the operator to have easy access to a control whilst in the rear of the vehicle. This is standard on all of our larger Lifts 1000kg + but is an option on all smaller Lifts.

If the vehicle lights cannot be moved due to Whole Vehicle Type Approval (WVTA), we can supply lifts with short columns to help assist you. As the column is reduced below floor, we have to utilise longer tail lift sliders and extend the column further above floor level.

Spring activated trolley stops are recommended as an alternative to hinged ramps, if wheeled trolleys are loaded/unloaded. The stop is “inactive” until the lever is slid back by foot. When released, the trolley stop springs open automatically, preventing wheeled trolleys from rolling off the platform.

These are our original guards introduced many years ago. They are still popular because they have to be deployed to use the tail lift yet they can rotate through 180° to allow the platform to be loaded/unloaded from the side. The opening and closing operation is quick and simple.
