EFFER 1405
LASTBILSKRAN
Remote controlled loader crane.
CE marked.
xx Tm range capacity loader crane.
CE marked.
xx Tm range capacity loader crane.

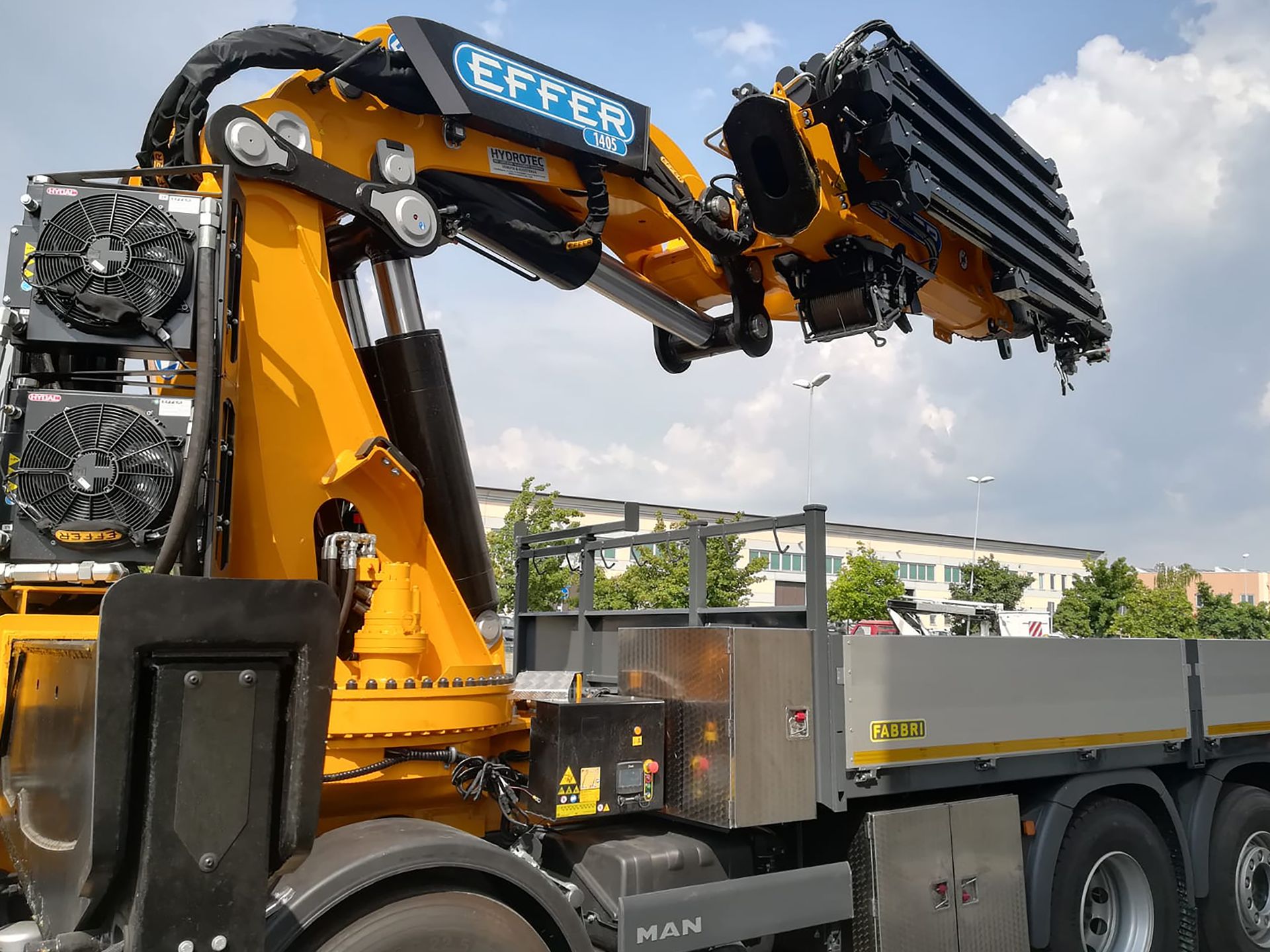

The 1405 crane combines the main technological EFFER innovations both from a technical-structural point of view and in terms of safety, because it is equipped with the Progress electronic control system.
The main booms of the crane and the various joints available allow operations to be performed even in environments where the available space is limited and the jib or crane hook needs be placed at a remarkable height.
The main booms of the crane and the various joints available allow operations to be performed even in environments where the available space is limited and the jib or crane hook needs be placed at a remarkable height.
Downloads
Modellspecifikationer
Hydraulisk förlängning (M) |
Lyftkapacitet (kNm) |
Vikt (kg) |
Maximum working slope |
Max. oil delivery |
Oil tank capacity |
EEFER 1405 4S | EFFER 1405 6S | EFFER 1405 7S | EFFER 1405 8S | EFFER 1405 9S |
---|---|---|---|---|
11.1 | 15.2 | 17.4 | 19.8 | |
981 | 948 | 934 | 933 | 930 |
9875 | 10680 | 11025 | 11315 | 11630 |
8.7 | 8.7 | 8.7 | 8.7 | 8.7 |
200 | 200 | 200 | 200 | 200 |
360 | 360 | 360 | 360 | 360 |
Lyftdiagram
Klicka för att hitta rätt lyftkapacitet för dig
4S
8S JIB 6S HEAVY DUTY
8S
9S
9S JIB 6S
7S
8S JIB 6S HEAVY DUTY JIB 2S
6S JIB 6S
7S JIB 6S HEAVY DUTY
6S
