Hiab is the world's leading provider of on-road load handling equipment, intelligent services, smart and connected solutions.

Hiab - We keep everyday life moving

DEL DL500GRP

PagePreview

Service and Support

Request a quote

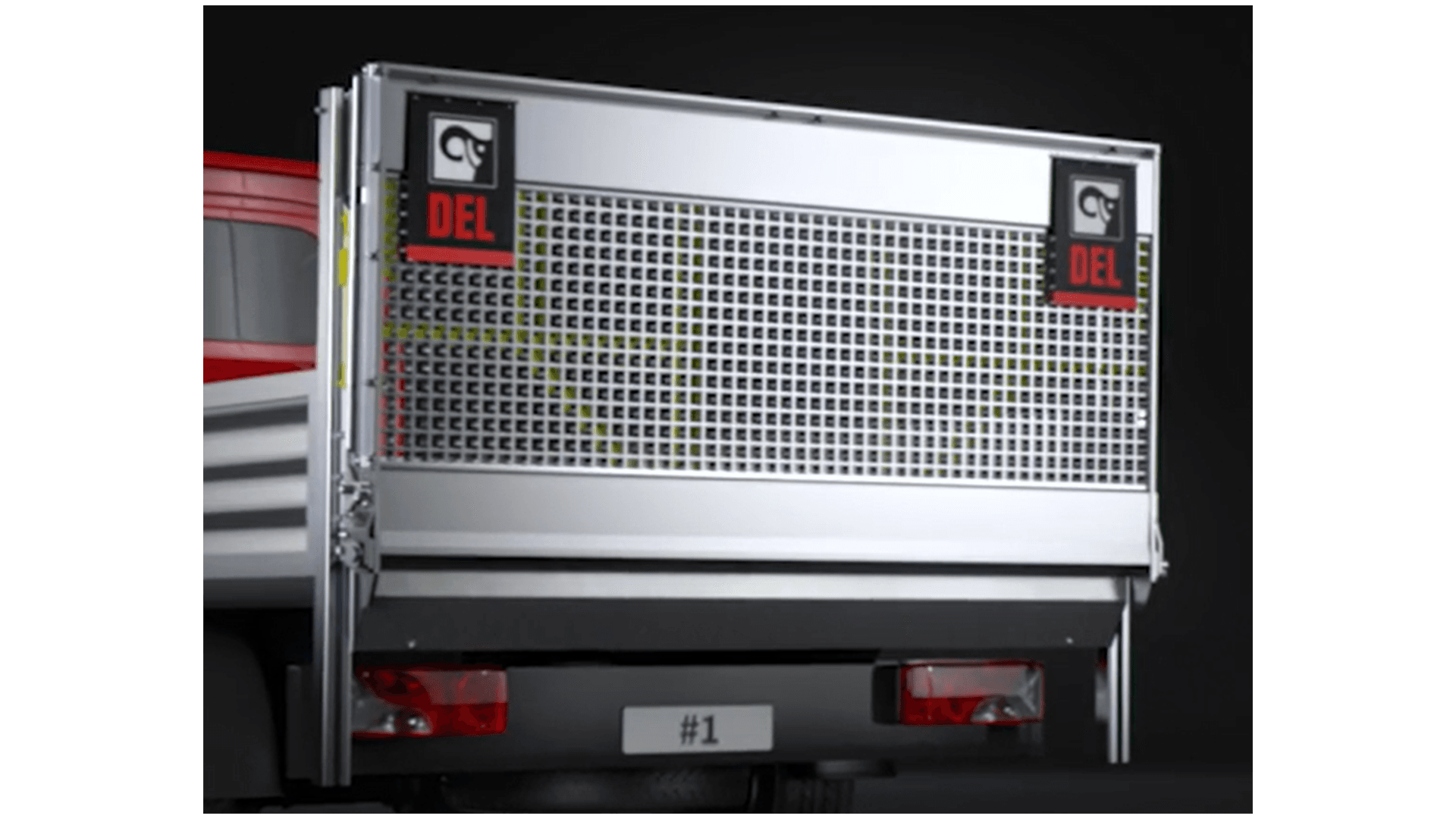

A popular column lift that is easy to fit, exceptionally light and reliable, and offers excellent value for money. Featuring a mesh window platform that allows debris to fall away, the lift is suitable for flatbeds and dropsides where visibility and reduced wind drag are high priorities. Based on the successful DL 500, the industry’s leading column lift for 3.5 tonne vehicles.


DL500GRP | Tail lift | Hiab

DEL DL500GRP  (Plastic Mesh)

#/categories/category[@name='productfinderdel']/description#

ProductFinderDEL

This is the simplest solution, the guards can be
fitted to any type of platform, on any type of tail lift
‘Pockets’ set into the platform allow the guard to
be dropped into position. When not needed
the guards are stored within the vehicle. These
type of guards can be retrofitted to tail lifts already
fitted to vehicles.

USP_961558

Drop in Detachable Guards

If the vehicle lights cannot be moved due to Whole
Vehicle Type Approval (WVTA), we can supply our
lift with short columns to help assist you with this.
As the column is reduced below floor, we have to
utilise longer tail lift sliders and extended the
column further above floor level.

USP_961552

Short Columns

We have a comprehensive range of fitting kits
available to suit a multitude of factory built dropside
and luton bodies. Each kit has been carefully
designed to ensure ease of fitment plus being
robust to stand up to daily operation.

USP_961553

Factory Body Fitting Kits

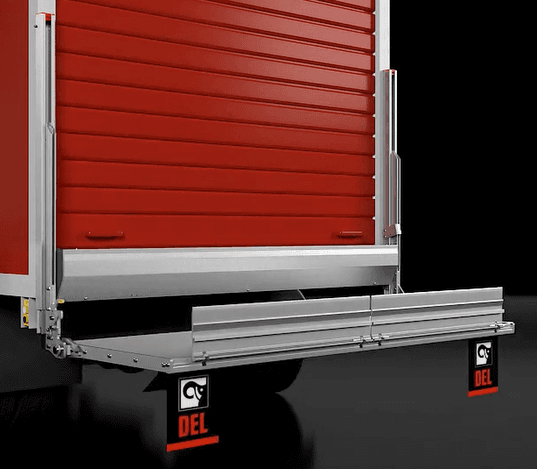

Permanently fixed to the platform.
Three positions possible.
1. Opened, to form a ramp from the platform
to the ground.
2. Locked vertically, to act as a trolley stop.
3. Folded back onto the platform surface before
platform is closed, prior to vehicle movement.

USP_961554

Hinged Rear Ramps

The spring activated trolley stops are recommended
as an alternative to hinged ramps, if wheeled
trolleys are loaded/unloaded. The stop is “inactive”
until the lever is slid back by foot. When released,
the trolley stop springs open automatically,
preventing wheeled trolleys from rolling off the
platform.

USP_961555

Trolley Stops

We have the ability to increase the overall working
size of the platform to suit a wide range of application
needs. Please contact our sales teams with
information on the items you are lifting and they will
help you spec the correct platform size for your
needs.

USP_961557

Extra Deep Platforms

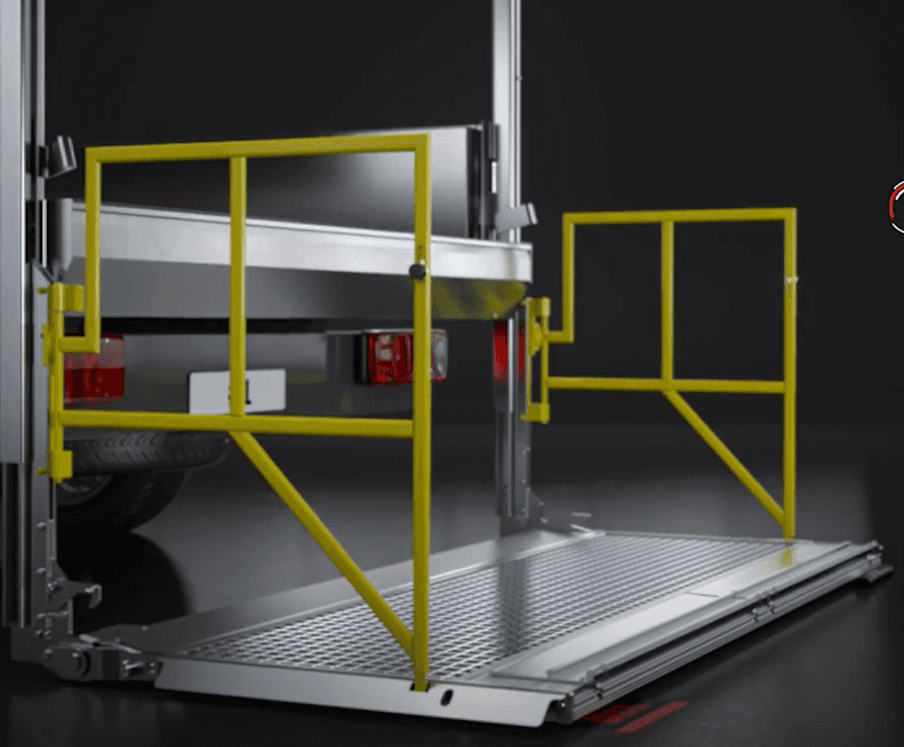

Arguably the safest and most user friendly types of
guards because they automatically deploy when
the platform is opened. The guards are permanently
hinged to the tip of the platform, simply closing
the platform causes the fences to fold up automatically.
Preferred by operators, because they have
no extra work to do but also by vehicle owners
because the guards must always be used.

USP_961559

Auto Erect Fences

These are our original guards introduced many
years ago. Probably still the most popular because
they have to be deployed to use the tail lift yet they
can rotate through 180° to allow the platform to be
loaded/unloaded from the side. The opening and
closing operation is quick and simple.

USP_961561

Wrap Around Fences

Film_884714
