WALTCO MDL/HP Series

PagePreview

Service and Support

Request a quote

Features vertical tracks that enable the platform to move via cables or chains in conjunction with a hydraulic cylinder (or two hydraulic cylinders directly attached to the platform) for maximum strength and performance. The tracks are welded to the rear frame of a trailer, pick-up truck, service, stake or truck body to ensure optimum safety. The platform conveniently stores over the rear door during travel.

1. MDL/HP-16

1. MDL/HP-20

1. MDL/HP-30

2. MDL/HP-16

2. MDL/HP-20

2. MDL/HP-30

#/categories/category[@name='productfinderwaltco']/description#

ProductFinderWALTCO

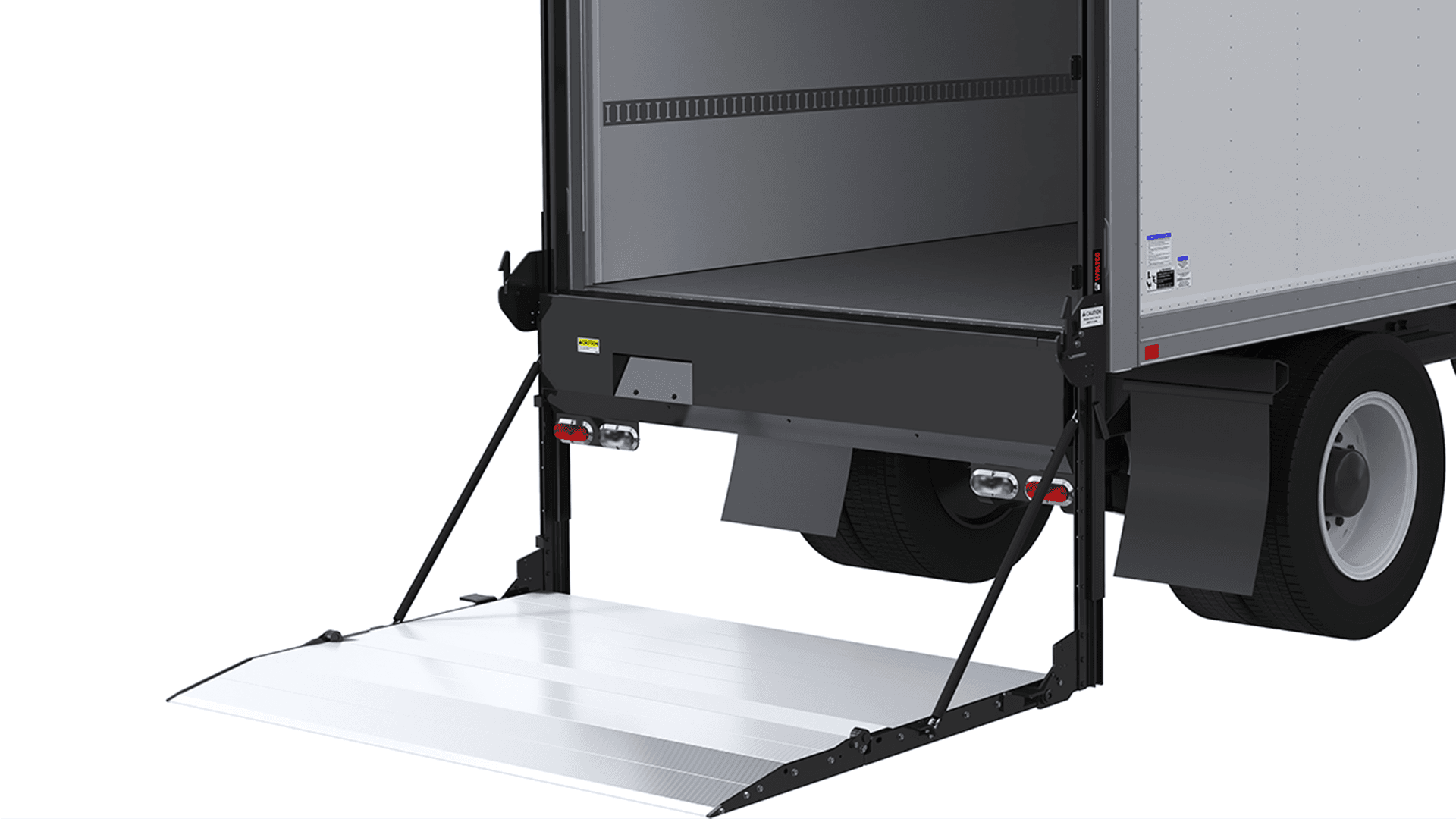

Mid-Level Rail Gate, in a steel/aluminum platform has a lifting capacity up to 3,000 lb's. This gate is geared towards straight trucks, cube, cutaway, or step vans, flat beds, and dual wheel service bodies.

USP_883668

Mid-level Hinged Platform Rail, up to 3,000 lb. capacity

Bed height range is dependent upon the platform size. The 42" deep platform requires a minimum bed height of 36", while the 48" and 54" deep platforms require a minimum of 40" from the floor of the bed to the ground.

USP_883669

Bed heights 36"/40" - 56"

This unique gate features a hinged design, presenting a steel mainframe with an extruded aluminum platform. We also provide bolt-on platform sidebars, allowing easy replacement of extrusion boards.

USP_883670

Modular Design

This gate comes fully equipped with anti-skid treadplate, built-in toe deflector, and dedicated ground.

USP_883671

Safety+ Features

Powder coat finish on key liftgate components produces a high-quality, corrosion resistant finish.

USP_883687

Powder Coat Finish

Equipped with torsion spring assist to make folding and unfolding the platform simple and smooth.

USP_677167

Easy-Fold
